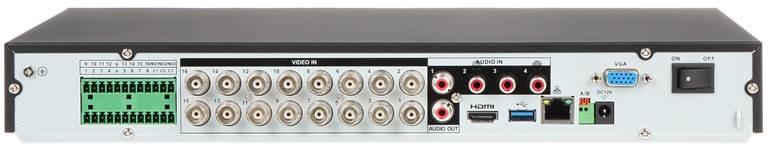

DVR 16CH HDCVI PENTABRID/XVR5216A-4KL-I3 DAHUA

Pentabrid capability: Each channel supports up to 8MP: HDCVI, AHD, TVI, CVBS and IP Video input, Auto-detect
16-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);
IP: 16+16 channels, each channel up to 8MP, Max 128 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
2x SATA interface up to 20 TB storage
VGA/HDMI up to 4K output
1 RJ-45, 2x USB ports, RS485
No front panel control, 4/1 Audio I/O, 16/3 Alarm I/O
1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: 16 channels Smart motion detection + Search by target classification (Human, Vehicle)
1 channel Perimeter Protection - Human/Vehicle secondary recognition for tripwire and intrusion, 10 IVS for each channel, Search by target classification (Human, Vehicle)
1 channel Face Recognition (only support analog camera), Max 12 face pictures/sec processing,
Free IP monitoring software available
